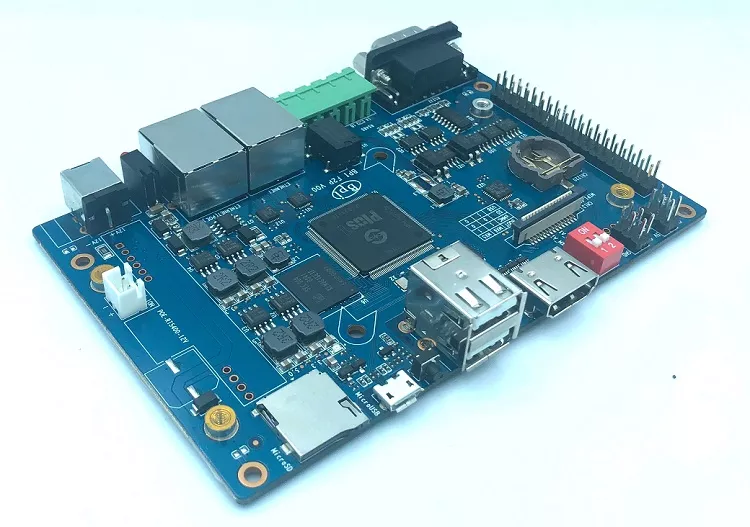

Banana Pi BPI-F2P industrial control board 512Mb RAM 8GB eMMC

Banana Pi BPI-F2P industrial control board 512Mb RAM 8GB eMMC

Banana Pi BPI-F2P je napredni mikro računar nove generacije namenjen za rad u zahtevnim okruženju.
Koristi Sunplus  čipa Plus1 (sp7021) , podržava PoE funkciju sa PoE modulom i podržava RS232 i RS485 vezu.

• SoC – Sunplus SP7021 “Plus1” with a quad-core Cortex-A7 processor @ 1.0 GHz,
  one Arm A926 microprocessor, an 8051 core for I/Os
• 512MB DDR3 DRAM.
• Storage – 8GB eMMC flash, microSD card slot
• Video Output – HDMI 1.4 output
• Camera I/F – MIPI CSI connector
• Connectivity – 2x 10/100M Ethernet
• USB – 2x USB 2.0 host ports, 1x micro USB port
• 2 USB header interface
• 40-pin GPIO header compatible
• 7.4V Lithium battery power supply interface
• RTC battery interface
• PoE function support
• Debugging – 3-pin header for UART console, SWD ICE port
• Option:  Security – TPM 2.0 via ST33TPH2EI2C secure element
• Power switch, reset button, boot selection dip switch
• Power Supply – 12VDC via powe jack
• Dimensions – 130x85mm
• Temperature Range – -40C ~ +85°C
