Banana Pi BPI-M2 Zero 512Mb RAM
3120RSD

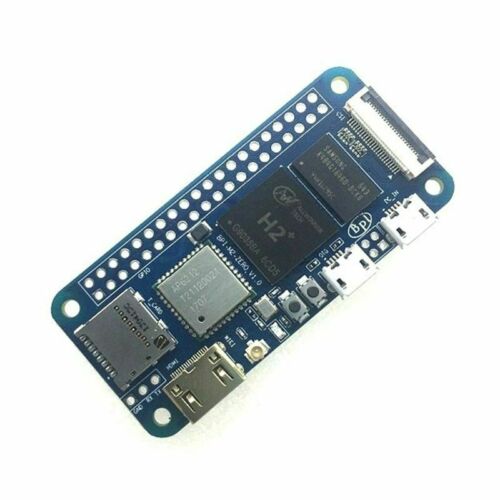

Banana Pi BPI-M2 Zero 512Mb RAM
- CPU: Allwinner H2+/H3, Quad-core Cortex-A7.
- 512MB DDR 3 SDRAM.
- WiFi (AP6212) & Bluetooth onboard.
- Mini HDMI.
- 40 Pin Raspberry Pi-compatible GPIO, including UART, SPI, I2C, etc.
- Same size as Raspberry Pi Zero W
Banana Pi M2 Zero je ultra kompaktni računar nove generacije sa jednom pločicom dimenzija samo 60mm*30mm. Njegov spoljni interfejs je isti kao kod Raspberri Pi Zero V, i odgovara skoro svim kućištima i dodacima za Zero V. Koristi četvorojezgarni A7 Allvinner H3 procesor, sa 512MB RAM-a. Idealan je za sisteme male težine i aplikacije sa ograničenim prostorom. Kao i drugi članovi porodice Banana Pi, podržava i i Android operativne sisteme.
Odlična zamena za Raspberry Pi.
| HardWare Specification of Banana pi BPI-P2 Zero VS BPI-M2 zero VS Raspberry Pi Zero W | |||
| Module | Banana Pi BPI-P2 Zero | Banana Pi BPI-M2 Zero | Raspberry Pi Zero W |
| CPU | H3 Quad-core Cortex-A7 H265/HEVC 1080P | H3 Quad-core Cortex-A7 H265/HEVC 1080P | Broadcom BCM2835 32 Bit 1 GHz ARM1176JZF-S single-core |
| GPU | Mali400MP2 GPU @600MHz,Supports OpenGL ES 2.0 | Mali400MP2 GPU @600MHz,Supports OpenGL ES 2.0 | VideoCore IV |
| Memory (SDRAM) | 512M DDR3(shared with GPU) | 512M DDR3(shared with GPU) | 512 MB DDR2 |
| Onboard Storage | TF card (Max. 64GB) | TF card (Max. 64GB) | TF card (Max. 64GB) |
| Onboard Network | 100M LAN | NOPE (but can extension with PIN define) | NOPE |
| PoE power | PoE function support | NOPE | NOPE |
| Onboard flash | 8G eMMC | NOPE | NOPE |
| Onboard WIFI | SDIO AP6212（option AP6181、AP6335） | SDIO AP6212（option AP6181、AP6335） | 802.11n wireless, Bluetooth 4.1 |
| Video decoding | 1080p@60fps,H.264 Video encoding 1080p@30fps,H.264 | 1080p@60fps,H.264 Video encoding 1080p@30fps,H.264 | 1080p30 H.264/MPEG-4 AVC high-profile decoder and encoder |
| Video input | A CSI input connector Camera | A CSI input connector Camera | CSI camera connector |
| Video Outputs | mini HDMI 1.4,1080P@30fps, DHCP | mini HDMI 1.4,1080P@30fps, DHCP | Mini HDMI and USB On-The-Go ports |
| Audio Output | Mini HDMI | Mini HDMI | Mini HDMI |
| Power Source | Micro USB with 5V/2A or PoE power | Micro USB with 5V/2A | 5V/2A |
| USB 2.0 Ports | one USB 2.0 OTG | one USB 2.0 OTG | one USB 2.0 OTG |
| Buttons | Power Button, Reset Button | Power Button, Reset Button | Composite video and reset headers |
| Low-level peripherals | 40 Pins Header,compatible with Raspberry Pi 3 | 40 Pins Header,compatible with Raspberry Pi 3 | 40 PIN |
| uart GPIO(1×3) pin | UART, ground | UART, ground | UART |
| LED | Power led & Status led | Power led & Status led | Power Status LED |
| IR | N/A | N/A | N/A |
| Supported OS | android linux | android linx | Linux |
| Product size | 65mm X 52.5mm | 65mm × 30mm | 65mm x 30mm |
| Weight | 30g | 15g | 9g |
